Aircraft Rinse Cart (ARC)

The best aircraft wash equipment. Safer pressure. Hot water. Rinse and wash. The Riveer Total Aircraft Washing System (TAWS) is the total package, producing high-flow rates that greatly reduce cleaning time while still effectively washing large surfaces. With a built-in air powered high-pressure foamer, the TAWS can cover the side of a CH47 (750 sq. ft) in less than 60 seconds. The TAWS’s efficiency is further supplemented by dual guns for two users and 200′ of total reach. And even while used simultaneously, will still produce high flow rates.

SOME FEATURES OF THE TAWS INCLUDE:

  • US Navy and US Army approved for rinsing fixed and rotary wing aircraft
  • 140°F Hot Water Wash and Rinse
  • Proprietary Turbine Engine Flush
  • High Pressure Foamer
  • Safe-for-aircraft 175 PSI
  • Completely self-contained
  • Built-in high flow air powered foamer
  • Ideal for anti-corrosion PM of civil and military aircraft
  • Easily transported with highway approved lights and brakes
  • Dual wands for faster rinsing

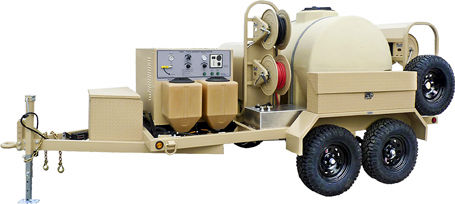

side view of TAWS

The spray can also easily reach 30 additional feet for cleaning large aircraft and tail sections. To lessen the possibility of mess, all hoses are on reels, and all guns have storage brackets and fit inside toolboxes for easy storage.

Each gun sprays 5 gallons of 140-degree water per minute, operating at a safe 175 PSI. These specifications meet the strict TM requirements for aircraft wash, rinse and decontamination procedures.

The system is low-pressure enough to be safe for the aircraft, but high-pressure enough to reach exposed steel, hinges, actuators, gear bays and other corrosion-prone areas. Quick connect yoke gives the user 10 GPM to reach 30’ high surfaces, such as tail sections.

SIMPLE AND FAST AIRCRAFT WASH

Not only is the TAWS easy to operate and maintain, but its trailer-mounted unit is completely self-contained. The TAWS is also able to operate in a variety of environmental conditions from 34 degrees F to 140 degrees F. Minimal operator training is required. With an intuitive layout and onboard operational instructions, TAWS operates on JP-8 and other common aircraft fuels or diesel. On-board or external supplies of water can be used to supply TAWS. A 525-gallon tank holds fresh water, allowing for extended run times between fill ups.

TURBINE ENGINE FLUSH

The turbine engine flush is a vital and important part of the TAWS allowing for mandatory turbine flush procedures when deployed without the benefit of depot level resources. Turbine cleaning requires low-pressure and low-flow pumping, both of which the TAWS features. Onboard fluid and compressed air hoses along with a variety of provided turbine flush fittings make turbine flush activities efficient and effective. TAWS effectively cleans aircraft engines by delivering gas path cleaner from an on-board tank. Both gas path cleaner and rinse water are delivered from operator managed controls on the TAWS. A maximum flow rate of 5gpm and a turbine safe maximum pressure of 45psi ensures a proper cleaning cycle without damage to expensive components.

MEETS STRICT GUIDELINES

Riveer TAWS was designed in conjunction with the U.S. Army for the purpose of aircraft cleaning in deployed locations. Top concerns were the harsh desert environment and the need for reliable systems in remote operations. This superior design, including water delivery system rated to perform aircraft washes and meet the washing and pressure guidelines in TM 1-1500-344-23-2. The TAWS trailer has won Riveer competitive contracts for washing system equipment from multiple branches of the US Military as well as numerous foreign military sales.

EASILY TRANSPORTABLE

Another benefit of the TAWS is its ability to be easily transported. It can be towed with HMMV, TUG, or other common AGE. It has a 6 to 28-inch tall tow bar and features stout and fully boxed trailer construction with a 7000# axle set rating. The TAWS also includes recessed 12v/24V LED lighting and both 7 pin RV and NATO style trailer wiring connectors are provided. Kevlar® Reinforced Goodyear® tires are resistant to tears and punctures round out the list of high-quality transportation features that come together to make moving the TAWS a simple process.

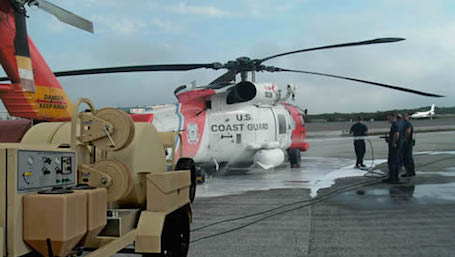

TAWS next to coast guard helicopter

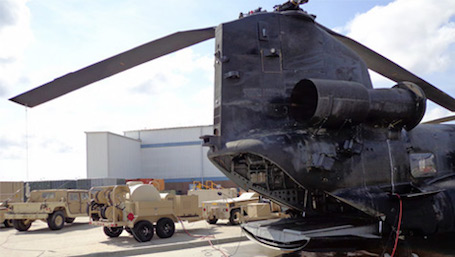

TAWS next to aircraft

While corrosion control is a necessity, it also shouldn’t require all of your time Riveer’s ARC is easy to operate.

ADDITIONAL FEATURES:

  • Run dry protection
  • Auto fill for unattended fill-up
  • Low RPM CARB Tie IV Diesel Powerplant
  • AGE retracting grounding cable
  • AGSE parking brake and DOT trailer
  • Min 12-hour operation with on-board fuel
  • On-board storage for components, spares, support equipment
  • NEMA 4 electrical construction
  • Water-cooled low RPM diesel generator
  • Variable angle spray nozzle
  • Advanced AGM battery for long storage life and exceptional power
  • Fully ruggedized structure with custom frame to provide a low center of gravity
  • Perimeter protection bumper to prevent damage to frame
  • Automatic shut-down for low pressure, high temp, low Hz or high Hz
  • Full protection circuitry for pumps, motors, and generator
  • IEC CE standard components
  • Easily drained for storage and transport with large dump valves
  • Available with hot water
  • Available with 2 additional guns (simultaneous use for 4 users)
  • OPTIONAL FEATURES:

    • Hot water at aircraft safe 140F (upgrades to 3 axle running gear)
    • 2000 gallon tank (upgrades to 3 axle running gear)
    • Four Gun Operation @ 10 GPM EA
    • Galvanized frame and structure
    • Foam spray up to 25’ with air compressor
    • 2000 hour spares kit
